#include <CameraModelMatlab.h>

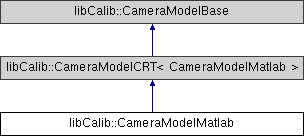

Inheritance diagram for libCalib::CameraModelMatlab:Public Types | |
| enum | ParameterIdx { fIdx = 0 , arIdx , cxIdx , cyIdx , k1Idx , k2Idx , k3Idx , p1Idx , p2Idx , skewIdx } |
Public Member Functions | |
| ParameterReference | f () |
| ParameterReference | ar () |
| ParameterReference | cx () |
| ParameterReference | cy () |
| ParameterReference | k1 () |
| ParameterReference | k2 () |
| ParameterReference | k3 () |
| ParameterReference | p1 () |
| ParameterReference | p2 () |
| ParameterReference | skew () |
| template<class Archive > | |
| void | serialize (Archive &ar) |
| Public Member Functions inherited from libCalib::CameraModelCRT< CameraModelMatlab > | |
| std::unique_ptr< ceres::CostFunction > | newCostFunction (const Point2 &imagePoint) const override |
| double | getVal (const std::string &name) const override |
| double * | getValsPtr () override |
| std::vector< double > | getVals () const override |
| void | setVals (const std::vector< double > &vals) override |
| bool | setVal (const std::string name, const double val) override |
| bool | setState (const std::string name, const ParameterState state) override |
| ParameterState | getState (const std::string name) override |
| std::vector< int > | getConstantIds () const override |
| int | getNParams () const override |
| const std::string | getName () const override |
| std::vector< ParameterName > | getParameterNames () const override |
| void | projectPoint (const double X, const double Y, const double Z, double &u, double &v) const override |
| void | unprojectPoint (const double &u, const double &v, double &X, double &Y, double &Z) const override |
| virtual void | getUndistortionMaps (Image< float > &mapU, Image< float > &mapV, Matrix< double, 3, 3 > &K) const override |
| virtual void | getUnprojectionMaps (Image< float > &mapX, Image< float > &mapY) const override |
| std::string | toString () const override |
| std::unique_ptr< CameraModelBase > | clone () const override |
| virtual void | initialize (const double f, const double ar, const double cx, const double cy, const double k1) override |
| void | serialize (Archive &ar) |
| CameraModelBase (const ImageSize imageSize) | |
| CameraModelBase () | |
| Public Member Functions inherited from libCalib::CameraModelBase | |
| CameraModelBase (const ImageSize imageSize) | |
| template<class Archive > | |
| void | serialize (Archive &ar) |
Static Public Member Functions | |
| static const std::string | name () |
| static const std::array< ParameterName, nParameters > | parameterNames () |
| template<typename T > | |
| static bool | distort (const T &x, const T &y, T &xd, T &yd, const T *params) |
| template<typename T > | |
| static bool | project (const T &X, const T &Y, const T &Z, T &c, T &r, const T *params) |
| template<typename T > | |
| static bool | unproject (const T &u, const T &v, T &X, T &Y, T &Z, const T *params) |
Public Attributes | |
| Parameters< nParameters > | parameters |
| Public Attributes inherited from libCalib::CameraModelBase | |
| ImageSize | imageSize |
Static Public Attributes | |
| static const int | nParameters {10} |
Matlab version of the Brown-Conrady camera model.
The model is very close to a reduced 10-parameter OpenCV standard model. It's output has been verified in Matlab. Note that 1 has to be added to principle point coordinates when working in Matlab's 1-based indexing environment.
| Parameters<nParameters> libCalib::CameraModelMatlab::parameters |
